Webinar – Closed Flexible Structures

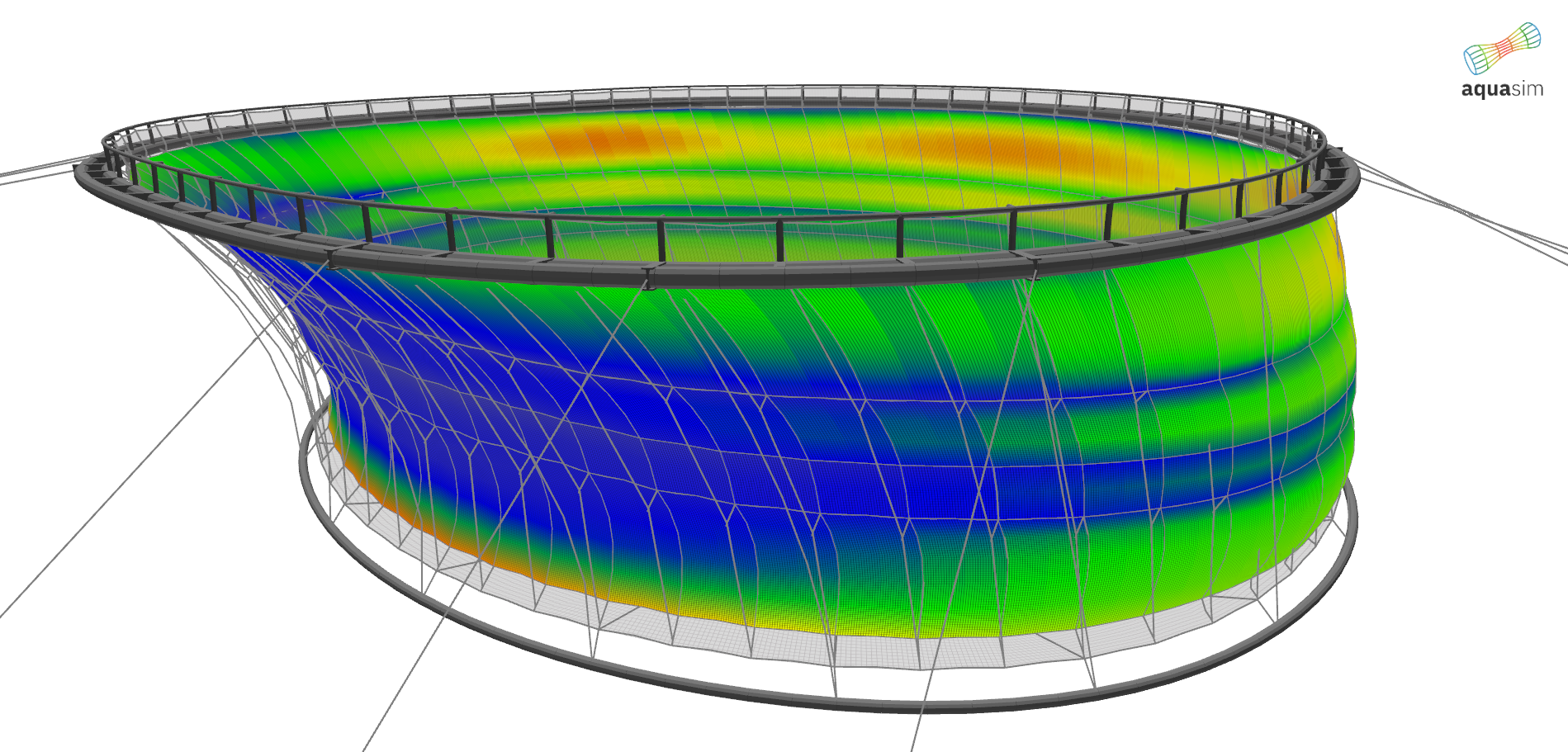

For the upcoming release 2.22 we have done further work to improve highly complex analysis with closed compartments and flexible, impermeable membranes. In our webinar we showed best practices when working with closed, flexible structures, and examples of structures.

The recording of the webinar is available on our YouTube channel.

Topics covered

Tarpaulin closed compartment

Introduction to the static equilibrium of closed systems, including internal water height, tarpaulin elasticity, and floater buoyancy. The tutorial also considers fresh water inside and brackish water outside.
Read PDF tutorial

Tarpaulin closed compartment, inner fluid mass

Introduction to added mass effects from internal water for dynamic analyses.
Read PDF tutorial

Hydrodynamic analysis in AquaSim using NEMOH

Introduction to hydrodynamic panel method analysis, added mass, and hydrodynamic damping.
Read PDF tutorial

Hydrodynamic analysis in AquaSim using “MacCamy-Fuchs”

Numerical calculation of diffraction loads and the MacCamy–Fuchs formulation.
Read PDF tutorial

Lice skirt with current

Introduction to drag parameters and current loads on lice skirts.
Read PDF tutorial

Wave loads on lice skirt

Introduction to wave loads and flexible tarpaulin parameters for lice skirts.
Read PDF tutorial
