Before applying environmental loads, a static equilibrium analysis is performed to verify the installed cable configuration and pretension level. Typical quantities that are evaluated at this stage are pretension (axial force) in the cable, bending moment and von Mises stress. These key quantities are illustrated in Figure 10-Figure 12.

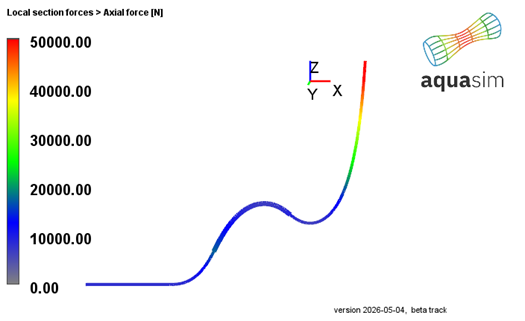

Figure 10 Pretension in the cable, represented by axial force in AquaView

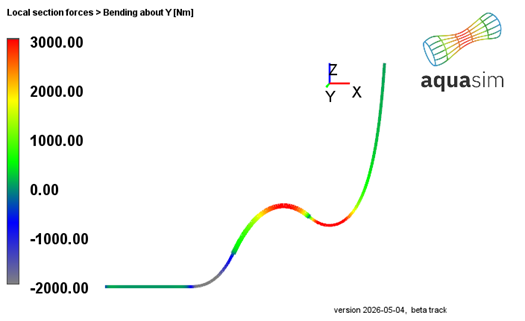

Figure 11 Bending moment in the cable, represented by local bending of the beam elements

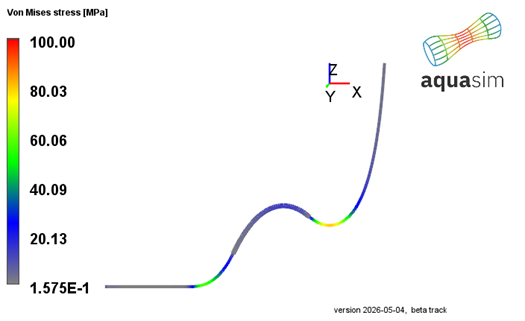

Figure 12 von Mises stress in the cable system, presented in AquaView

If the obtained cable layout or pretension does not match the desired configuration, the following input parameters may be adjusted: pre-strain definition in the cable, prescribed translation and rotation of the back-end node. Several iterations may be required before the desired installation condition is achieved.

To verify that the cable has obtained the intended equilibrium configuration, vertical- and horizontal position could be plotted in AquaView. This is illustrated in Figure 13 and Figure 14.

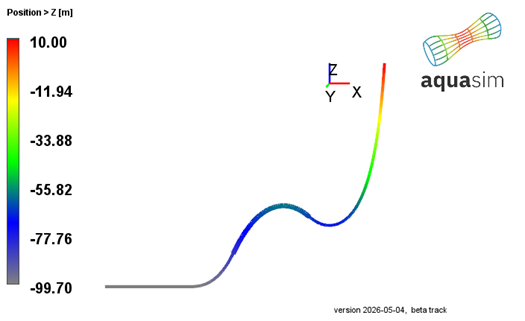

Figure 13 Vertical (z) position in cable layout condition

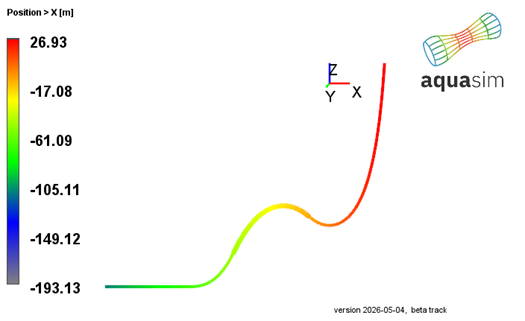

Figure 14 Horizontal (x) position in cable layout condition
